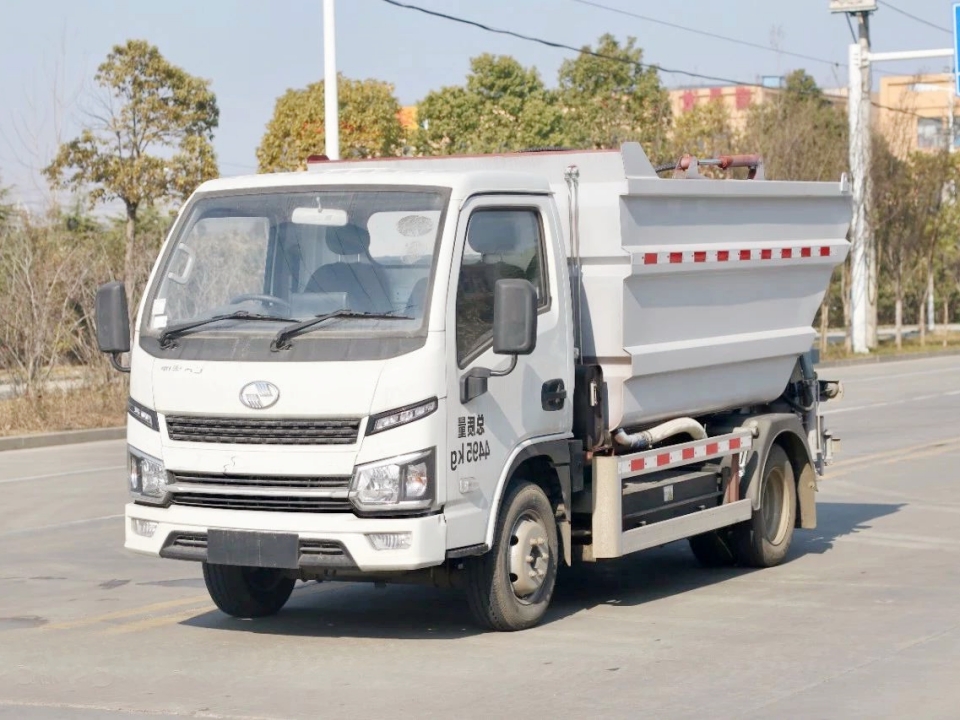

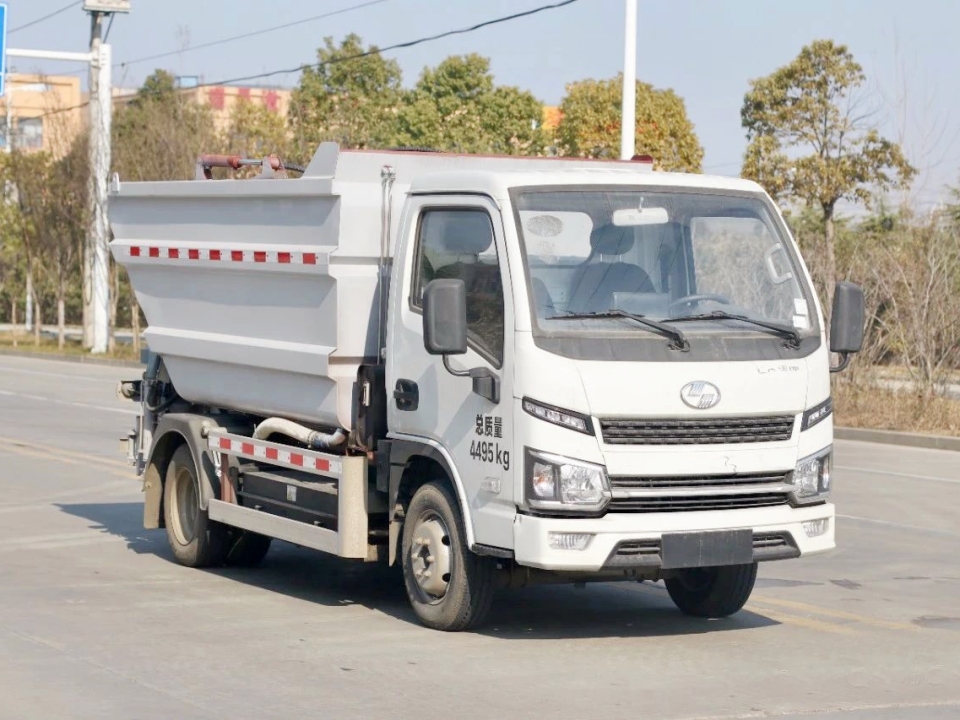

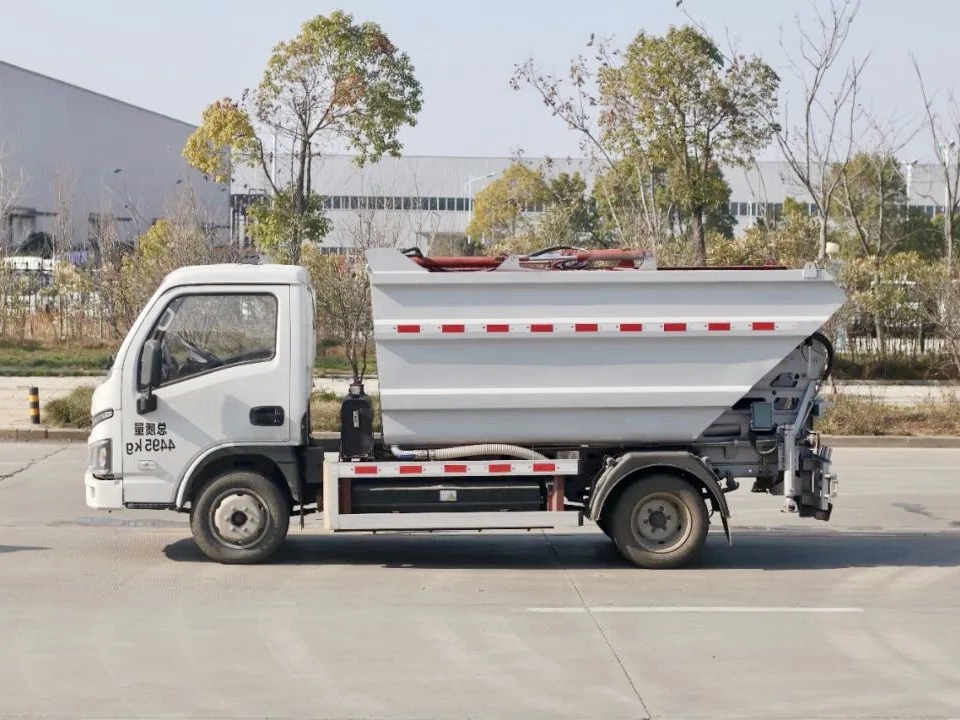

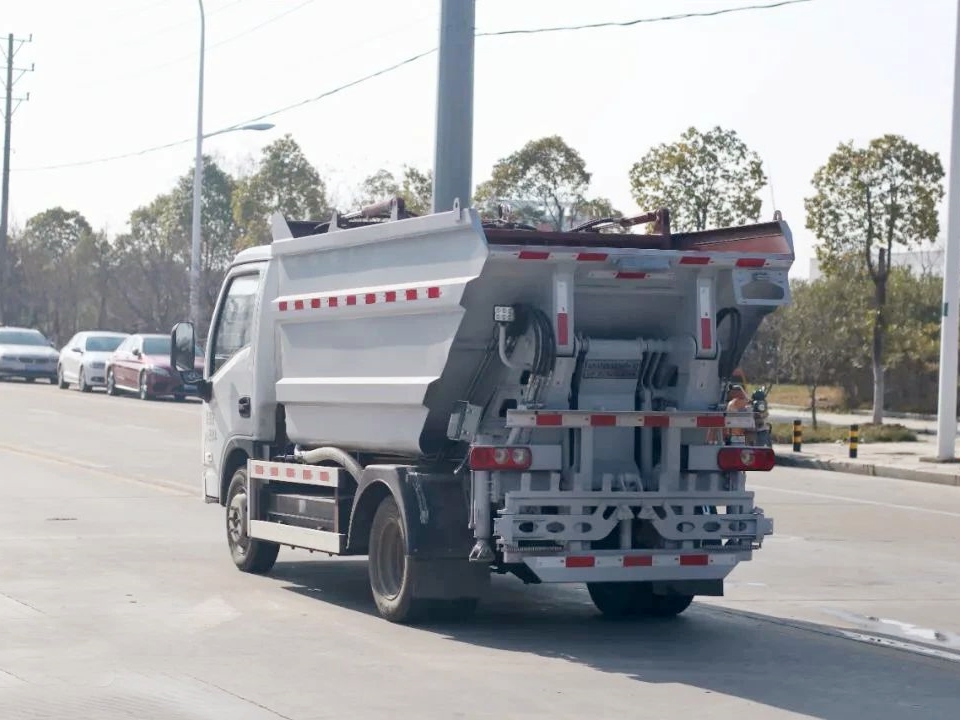

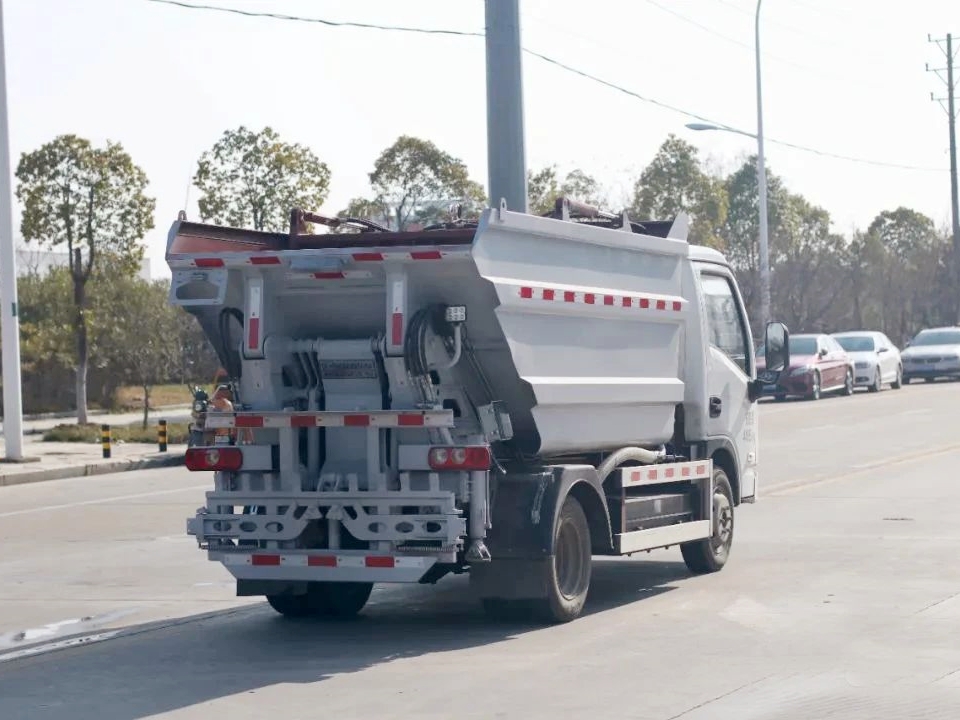

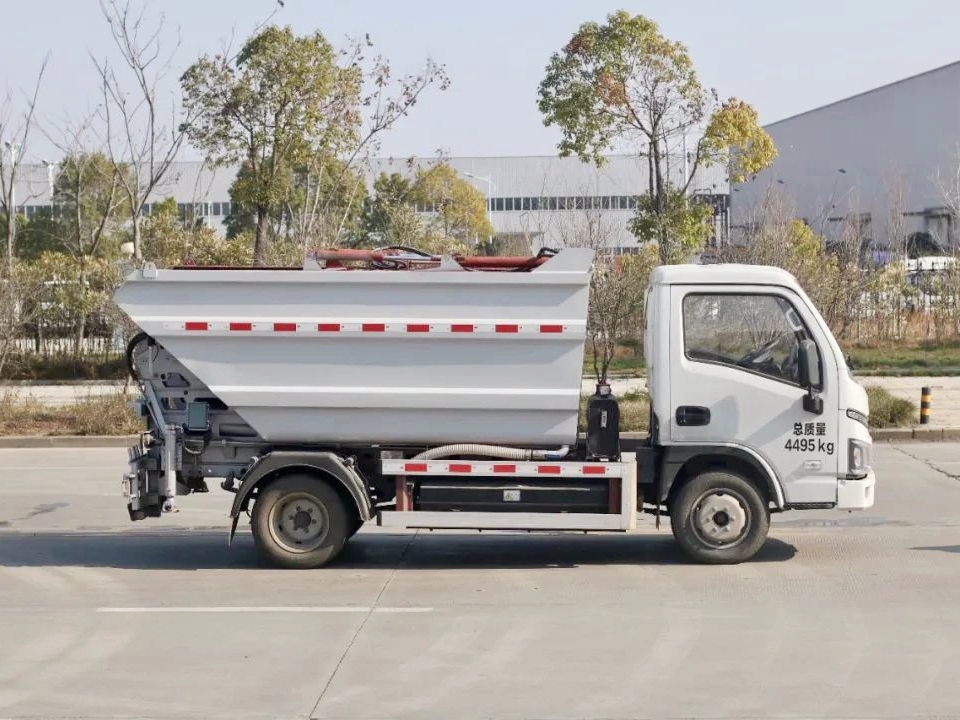

SAIC Yuejin electric 4m³ self loading and unloading garbage truck

Chassis configuration:

1.Engine: TZ290XS025, 136kw

2.Transmission type: 5-speed gearbox

3.Wheelbase:2850(mm)

4.Tyre:185R15LT 8PR, 6+1 spare

5.Other: SAIC Yuejin cab

Product Name： SAIC Yuejin electric 4m³ self loading and unloading garbage truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3180(Kg)

Product Features

SAIC Yuejin electric 4m³ self loading and unloading garbage truck

Self loading and unloading garbage truck: also known as bucket hanging garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.

Product parameters

Product Name	SAIC Yuejin electric 4m³ self loading and unloading garbage truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3180(Kg)
Rated weight(kg)	1185(Kg)
Wheelbase(mm)	2850(mm)
Overall Dimension(mm)	5250×1780×2200(mm)
Vehicle cargo box size	3190×1600×1046(mm)
Engine	TZ290XS025, 136kw
Total electricity consumption (KWh)	55.7
Battery type	CATL lithium iron phosphate
Battery energy density (wh/kg)	146.3
Range (Km)	250
Axle Quantity	2
Transmission Type	Wanliyang 5-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	185R15LT 8PR, 6+1 spare
Cab	SAIC Yuejin cab
Volume(m³)	4m³
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
