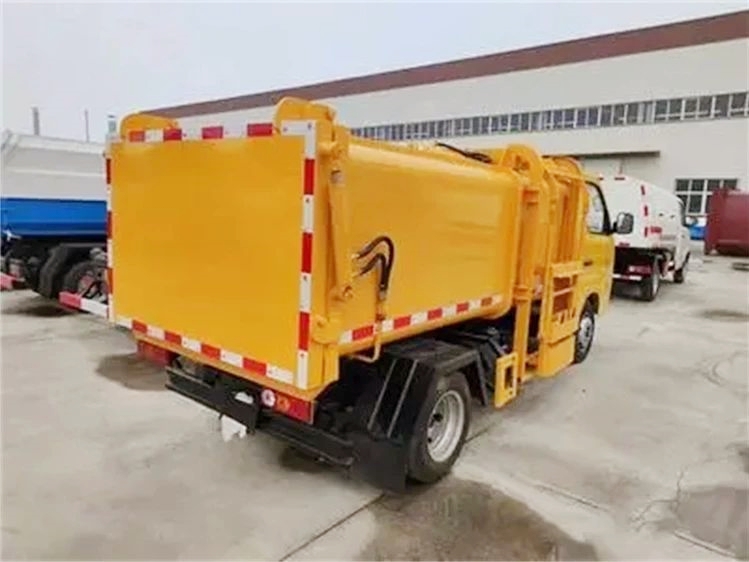

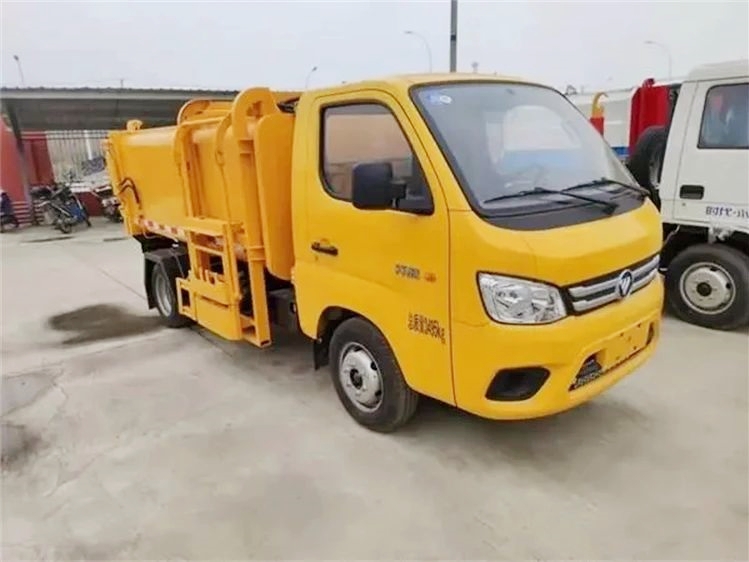

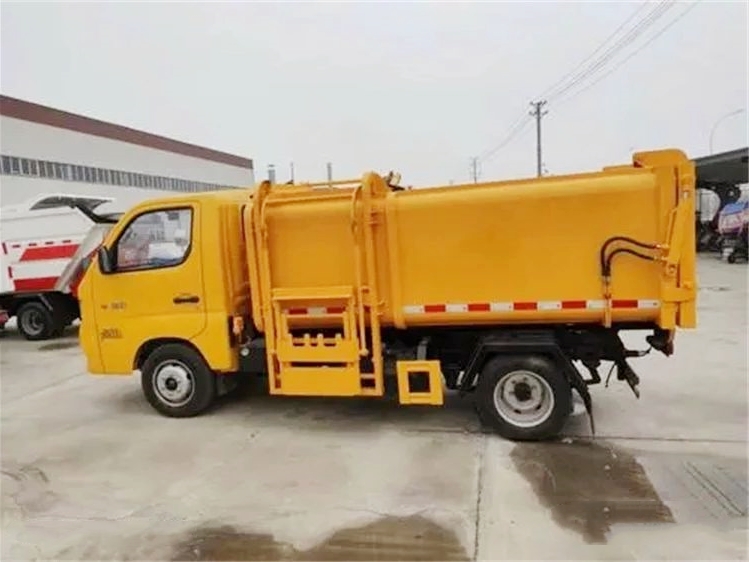

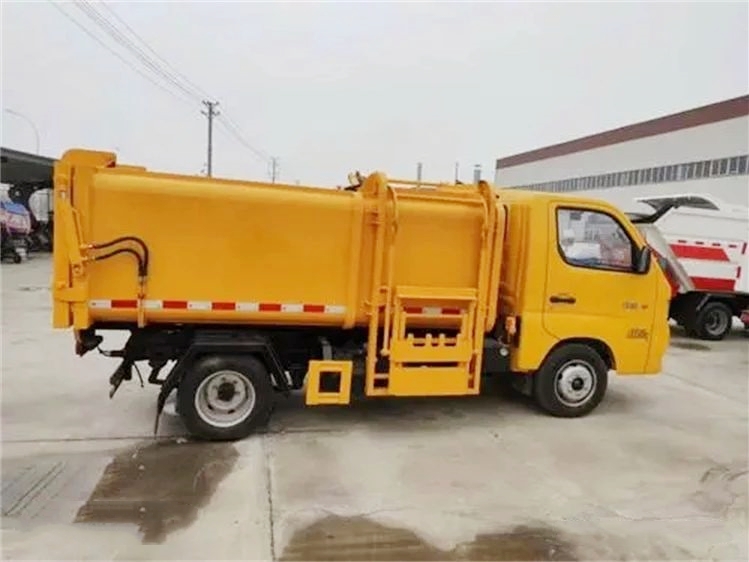

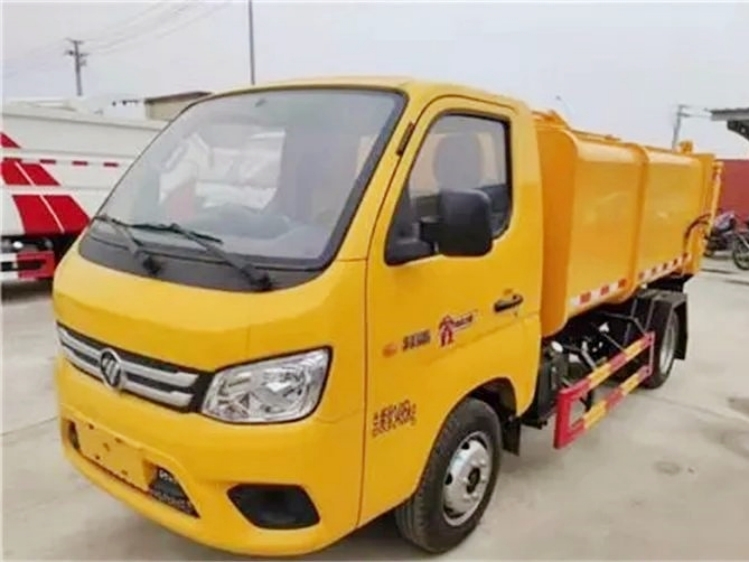

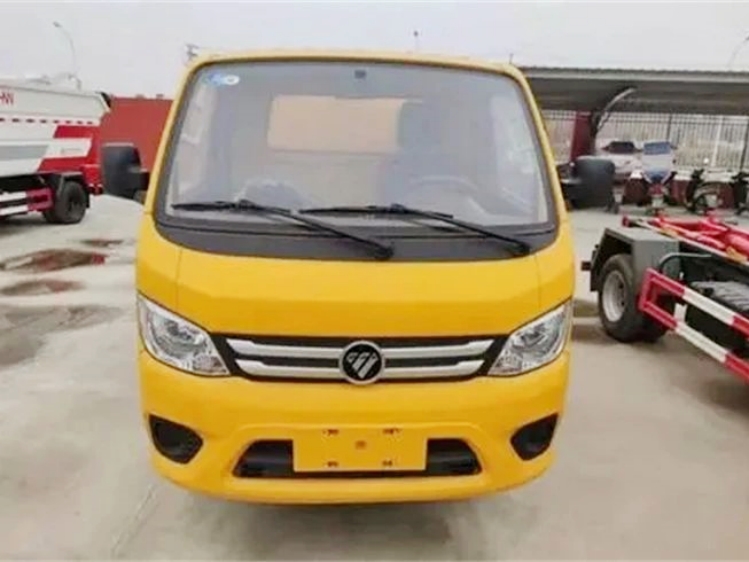

FOTON Xiangling M1 hanging bucket garbage truck

Chassis configuration:

1. Engine: DAM16KR, 122kw

2.Transmission type: 5-speed gearbox

3.Wheelbase:3070,3170(mm)

4.Tyre:175R14LT 8PR, 6+1 spare

5.Other:FOTON Xiangling M1 cab

Product Name： FOTON Xiangling M1 hanging bucket garbage truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 2995(Kg)
Curb weight(Kg)： 2000(Kg)

Product Features

FOTON Xiangling M1 hanging bucket garbage truck

Hanging bucket garbage truck, also known as self loading and unloading garbage truck, is mainly used for transporting various types of garbage in various environmental sanitation, municipal and large-scale industrial and mining departments. It can also transport bulk building materials such as ash, sand, stone, soil, etc. It can also transport ore or coal in mines or coal mines. It consists of a sealed garbage bin, hydraulic system, and operating system. The lifting oil cylinder (2 pieces) garbage bin can be hung up and down by itself, and the working cycle time of up and down is ≤ 50S.

Product parameters

Product Name	FOTON Xiangling M1 hanging bucket garbage truck
Driving Type	4×2
Gross vehicle weight(Kg)	2995(Kg)
Curb weight(Kg)	2000(Kg)
Rated weight(kg)	865(Kg)
Wheelbase(mm)	3070,3170(mm)
Overall Dimension(mm)	4775,4875×1730×2320(mm)
Engine	DAM16KR, 122kw
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	175R14LT 8PR, 6+1 spare
Cab	FOTON Xiangling M1 cab
Volume(m³)	/
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
