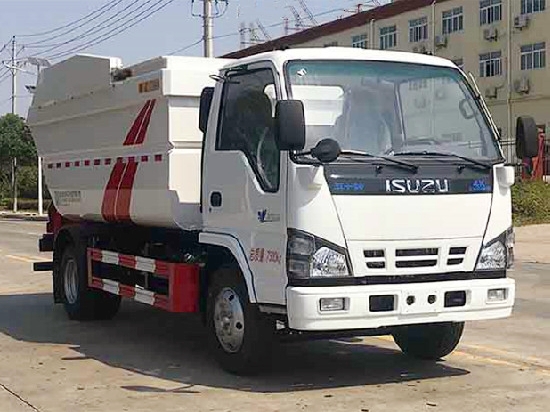

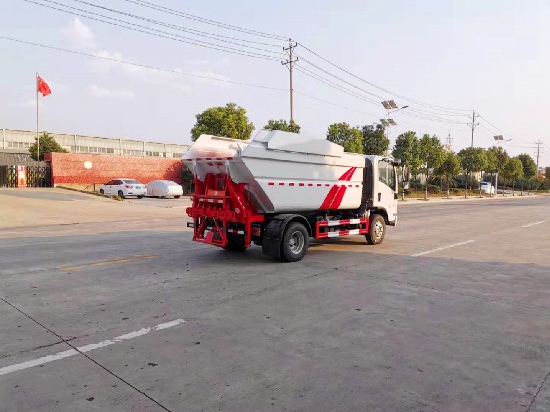

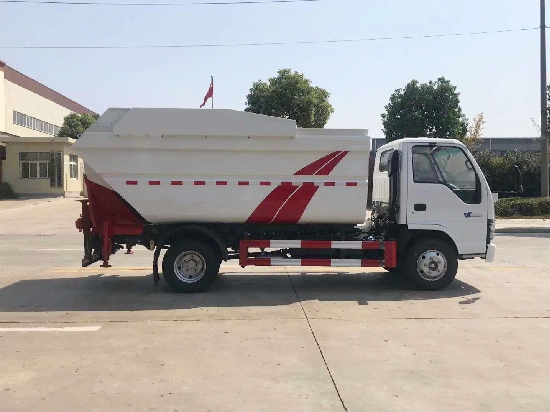

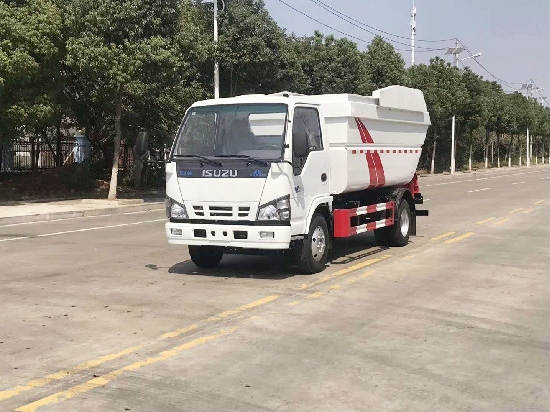

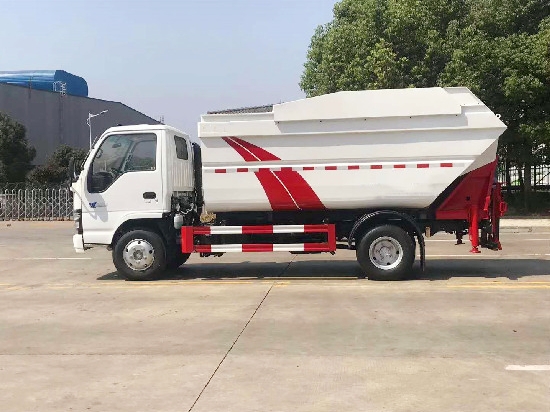

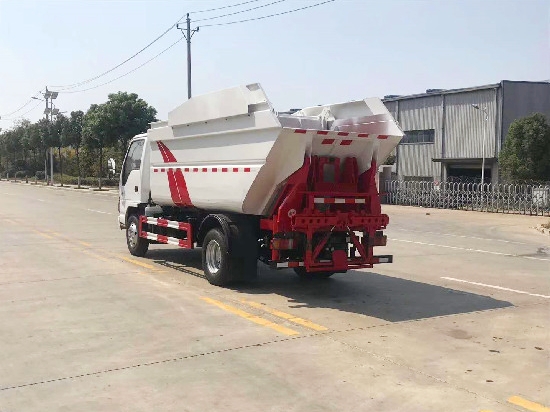

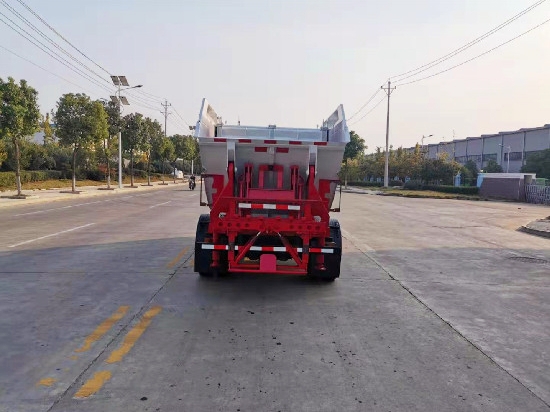

Isuzu 4X2 rear hanging bucket garbage truck

Chassis configuration:

1. Engine: 4KH1CN6LB, Isuzu 120hp

2.Transmission type: 5-speed gearbox

3.Wheelbase: 3360(mm)

4.Tyre: 7.00R16LT 14PR,7.00-16LT 14PR, 6+1 spare

5.Other: Isuzu cab
Installation configuration:

The effective volume of the car body is 7 cubic meters. The rear loading bucket mechanism can be connected to 120L/240L standard plastic buckets for operation. The bucket flipping mechanism adopts a lightweight design, with strong lifting and feeding power. It is equipped with manual and automatic operation modes, which can achieve a one click feeding process.

Product Name： Isuzu 4X2 rear hanging bucket garbage truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 7300(Kg)
Curb weight(Kg)： 4460(Kg)

Product Features

Isuzu 4X2 rear hanging bucket garbage truck

Hanging bucket garbage truck, also known as self loading and unloading garbage truck, is mainly used for transporting various types of garbage in various environmental sanitation, municipal and large-scale industrial and mining departments. It can also transport bulk building materials such as ash, sand, stone, soil, etc. It can also transport ore or coal in mines or coal mines. It consists of a sealed garbage bin, hydraulic system, and operating system. The lifting oil cylinder (2 pieces) garbage bin can be hung up and down by itself, and the working cycle time of up and down is ≤ 50S.

Product parameters

Product Name	Isuzu 4X2 rear hanging bucket garbage truck
Driving Type	4×2
Gross vehicle weight(Kg)	7300(Kg)
Curb weight(Kg)	4460(Kg)
Rated weight(kg)	2710(Kg)
Wheelbase(mm)	3360(mm)
Overall Dimension(mm)	5575,5725×1980×2560(mm)
Engine	4KH1CN6LB, Isuzu 120hp
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT 14PR,7.00-16LT 14PR, 6+1 spare
Cab	Isuzu cab
Volume(m³)	7m³
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
