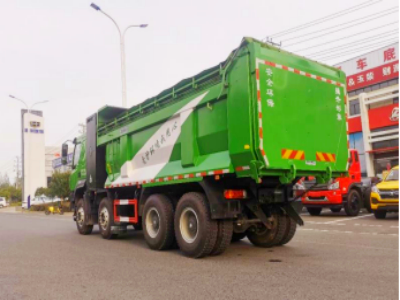

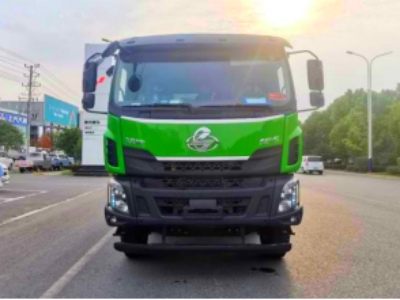

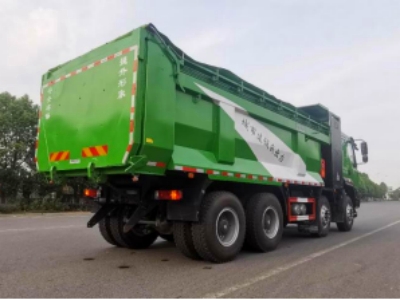

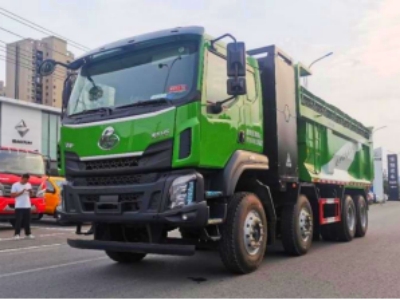

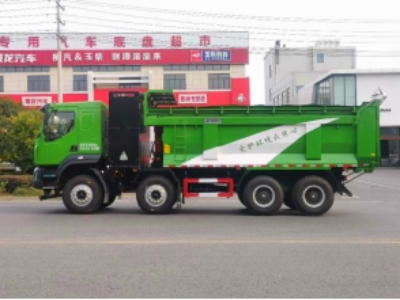

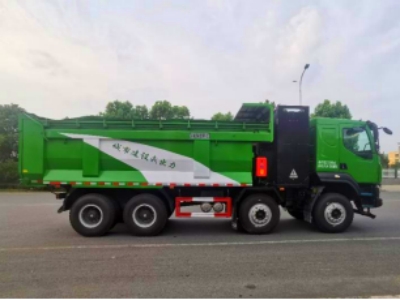

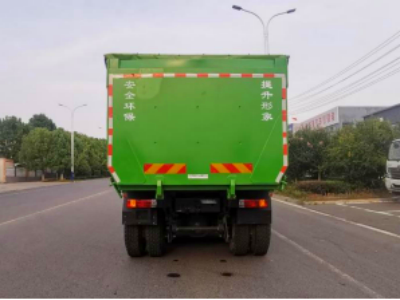

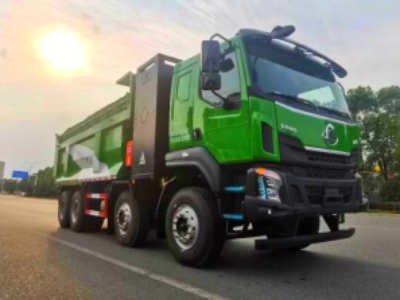

Liuqi Chenglong 8X4 Pure Electric Self dumping Garbage Truck

Chassis parameters:Chenglong H5 battery swapping and self dumping (composite version), equipped with Liuqi Chenglong H5 cab, Langao motor 250/360KW, Fast 6-speed AMT, Ningde Times 282kWh battery, 282 (8+4) double-layer frame, front axle 2 * MAN7.5T, rear axle 2 * 300 punch welding (5.921), multi leaf spring 11/11/13
Energy replenishment method: charging/swapping
Top length: 5600mm, 5800mm
Top thickness: 6mm bottom, 4mm edge
Dimensions: 95159715 × 25002550 × 34003460
Usage conditions: Short distance fixed routes such as power plants, mines, steel, and slag

Product Name： Liuqi Chenglong 8X4 Pure Electric Self dumping Garbage Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 31000(Kg)
Curb weight(Kg)： 17000,17200,17600,18000,18400,18600(Kg)

Product Features

Dump garbage truck also known as bucket hanging garbage truck, self loading and unloading garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.

The high-level self loading and unloading garbage truck is modified from a second-class chassis with specialized working devices such as garbage bins, bucket flipping mechanisms, sub frames, hydraulic systems, and electronic control systems. Widely applicable to environmental sanitation, municipal administration, property communities, residential areas with high and concentrated garbage, urban streets, etc., it has a sealed self dumping function, hydraulic operation, and convenient intelligence.

Product Features:
1. Lightweight, vehicle lightweight design, chassis adopts lightweight rear axle, aluminum alloy steel ring and other lightweight configurations, leading the industry in self weight;
2. High reliability, the only domestic keel frame structure cab, double-layer beams, and all three electric systems adopt first-class brands, ensuring safety and reliability;
3. High efficiency, equipped with a 6-speed automatic transmission for smoother operation, covering the highest efficiency speed range, and high energy-saving efficiency.

Product parameters

Product Name	Liuqi Chenglong 8X4 Pure Electric Self dumping Garbage Truck
Driving Type	4×2
Gross vehicle weight(Kg)	31000(Kg)
Curb weight(Kg)	17000,17200,17600,18000,18400,18600(Kg)
Rated weight(kg)	13870,13670,13270,12870,12470,12270(Kg)
Wheelbase(mm)	2050+2950+1350,2050+3350+1350,2050+3750+1350,2050+4150+1350,2050+4400+1350,1800+3200+1350,1800+3600+1350,1800+4000+1350,1800+4400+1350,1800+4650+1350(mm)
Overall Dimension(mm)	9515,9715×2500,2550×3400,3460(mm)
Engine brand & model	TZ388XSLGE02
Battery type	Lithium Iron Phosphate battery
Axle Quantity	4
Transmission Type	Fast 6-speed AMT
Steering Type	LHD or RHD with power steering
Brake system	/
Tire Spec. & size	11.00R20 18PR,12.00R20 18PR,12R22.5 18PR, 12+1 spare
Cab	Liuqi Chenglong H5 cab
Volume(m³)	/
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
